Firetube Boilers
Designed to deliver robust and highly reliable thermal energy with maximum efficiency. Utilizing a multi-pass shell system coupled with a fully submerged wetback reversal chamber, this flagship unit delivers consistent performance and exceptional steam dryness under rapid load changes.
Advanced Shell & Combustion Design
Three-Pass Wetback Configuration
Fully submerged wetback turnaround chamber redirects combustion gases optimally, completely eliminating rear-door refractory stress and significantly reducing maintenance intervals.
Morison Corrugated Furnace
Specially configured corrugated combustion furnace chamber expands safely under cyclic thermal strain, enhancing turbulence and increasing overall radiative surface area.
Optimal Thermal Storage Buffer
Features a large water volume combined with an expansive steam separation space, guaranteeing dry steam production even during rapid load spikes and high surges.
Multi-Fuel Intelligent Burner
Clean-burning integration for gaseous and liquid fuels. Achieves optimal fuel-to-air mixtures resulting in ultra-low emission footprints and compliance with world standards.
Heavy-Duty Shop Production & Diagnostics

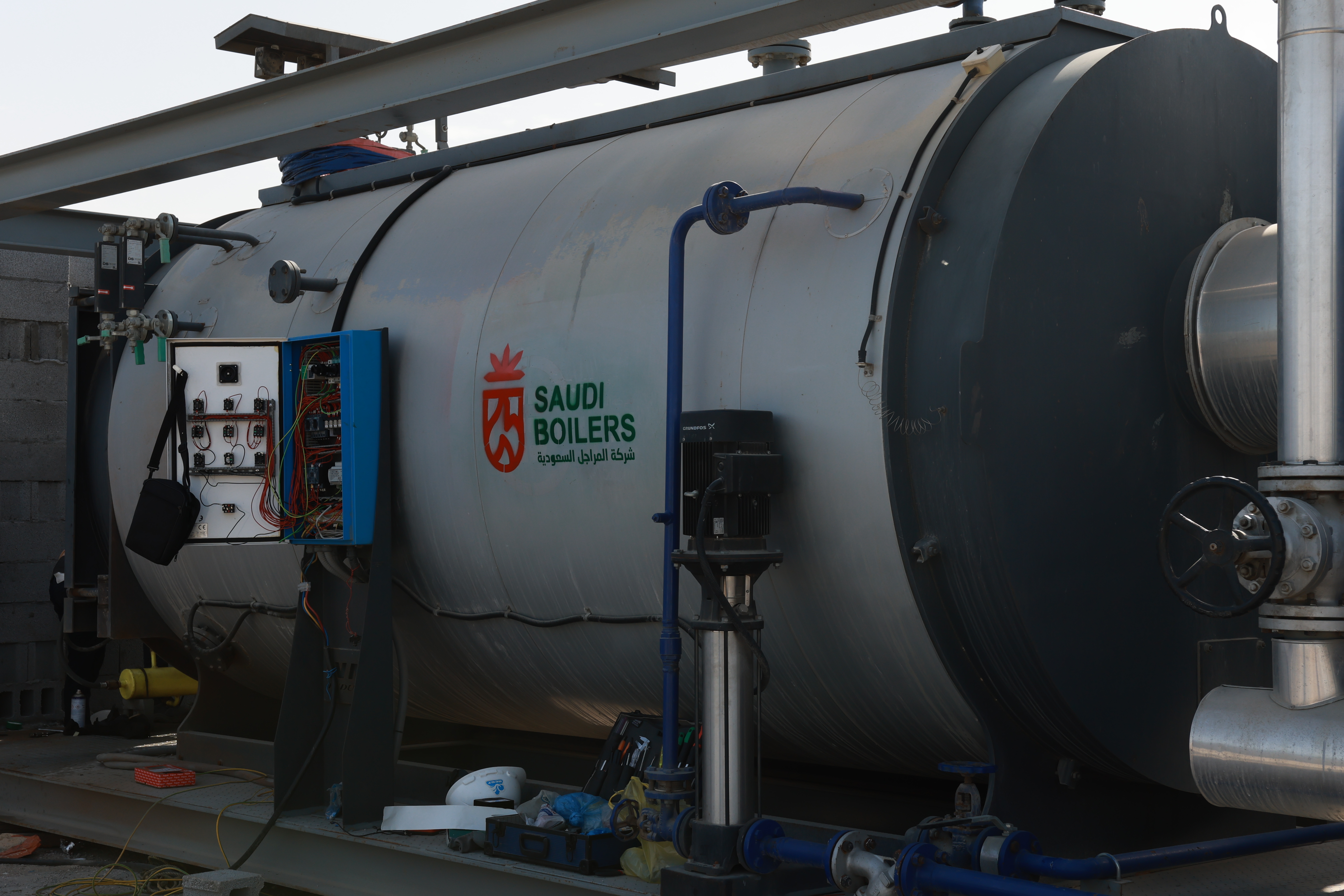

ASME SAW
Precision Submerged Arc Welding
All outer longitudinal and circumferential seams are joined via state-of-the-art automatic SAW machines to ensure maximum structural integrity.
100% Seamless

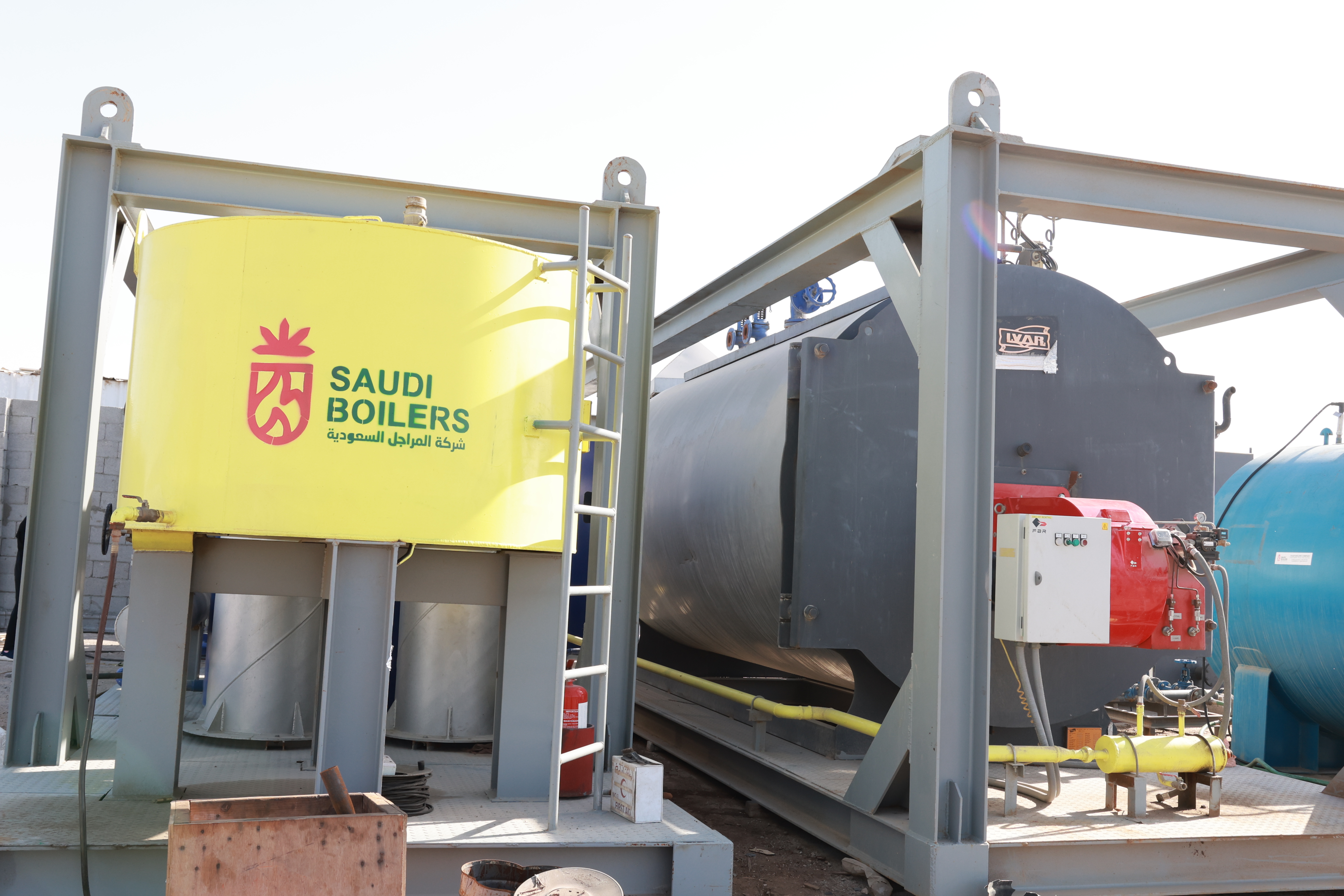

High-Fidelity Tube-to-Tubesheet Expanding
Heavy smoke tubes are systematically inserted, pneumatically expanded, and seal-welded to prevent potential stress corrosion cracking.
NDT AUDIT
Ultrasonic & Radiographic NDT Audits
Advanced non-destructive physical testing is executed at critical stages, confirming that zero micro-fissures or weld gaps exist in the boiler walls.
Interactive Firetube Blueprint Drawings
Access our official 2026 ASME-compliant layout dimensions, wetback reversing chamber schematics, and overall mechanical footprint coordinates for industrial processing networks.
Configure Specific Thermal Parameters
Connect directly with our Khobar Headquarters Engineering Division to customize shell dimensions matching your specific process heating metrics.
